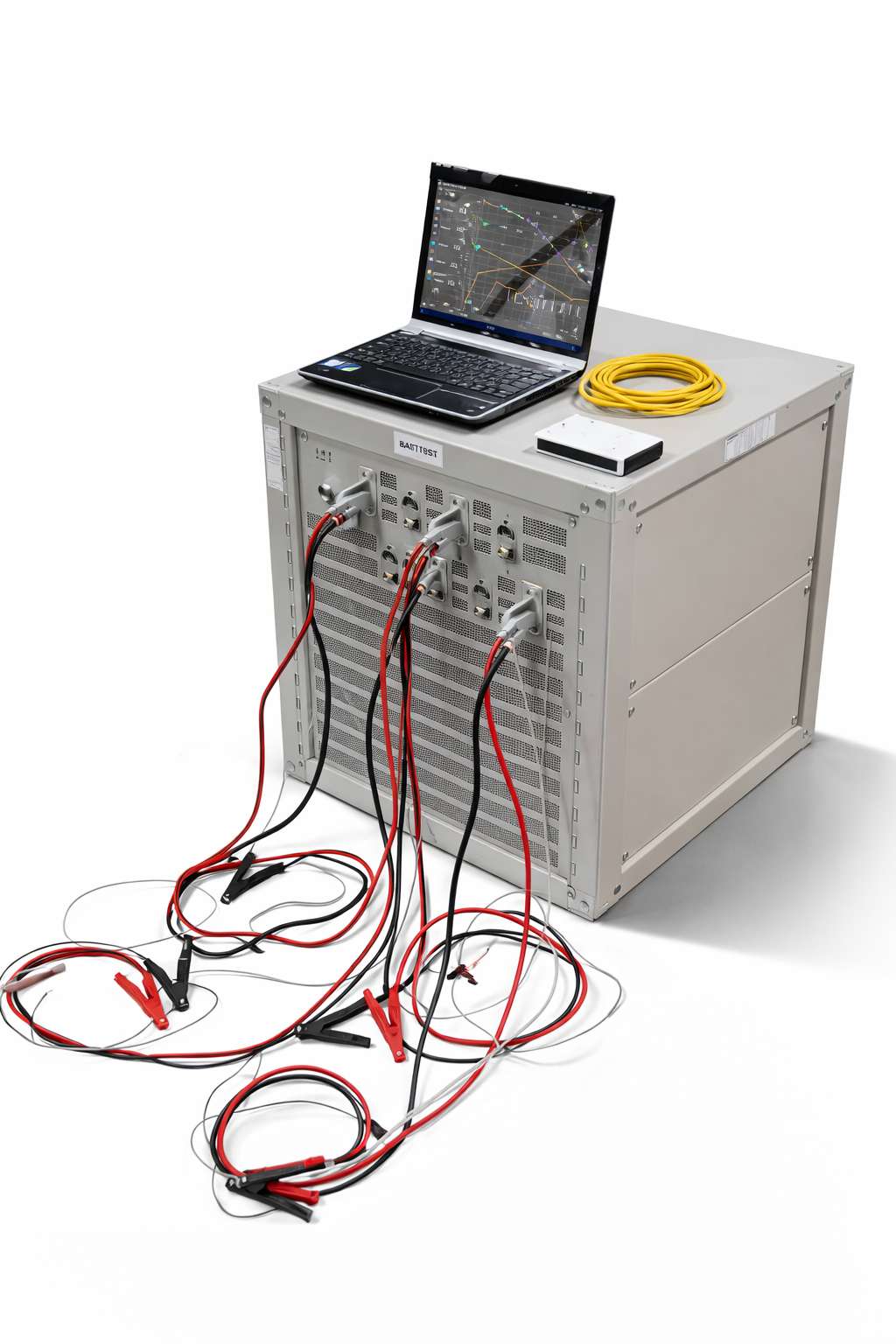

The Battery Analyzer / Cycler – Multi‑Channel with Internal Resistance Analysis (8‑Channel) is a high‑precision electronic test system designed for simultaneous charge–discharge cycling, performance characterization, and internal resistance measurement of rechargeable battery cells and small modules. The system enables independent operation of eight isolated test channels, allowing multiple batteries to be tested under different electrical profiles at the same time.
Specification/Features
- Working Voltage 220 – 240V AC, 50/60Hz, Single phase
- Max. Power Consumption 0.2 KW Max each channel
- 1.6KW in total
- Voltage measurement
- Range: 0.01 – 5 V,0.1-20V, 1-100V
- Accuracy: ± (0.1% of reading + 0.05% of range)
- Current measurement Range: 0.1 – 5A on each channel
- Accuracy: ± (0.2% of reading + 0.1% of range)
- Data Register Conditions
- Time interval: 0.1 – 999 seconds
- Cycle Measurement
- Range 1 – 9999 times
- Input Impedance ≥ 10 m-ohm
- Battery charging and discharging voltage range o VDc-5VDc
- Battery charging and
- discharging current
- range o A-5 A
- Battery charging method
- CC,CV Mode
- Battery discharge method
- CC and CV
