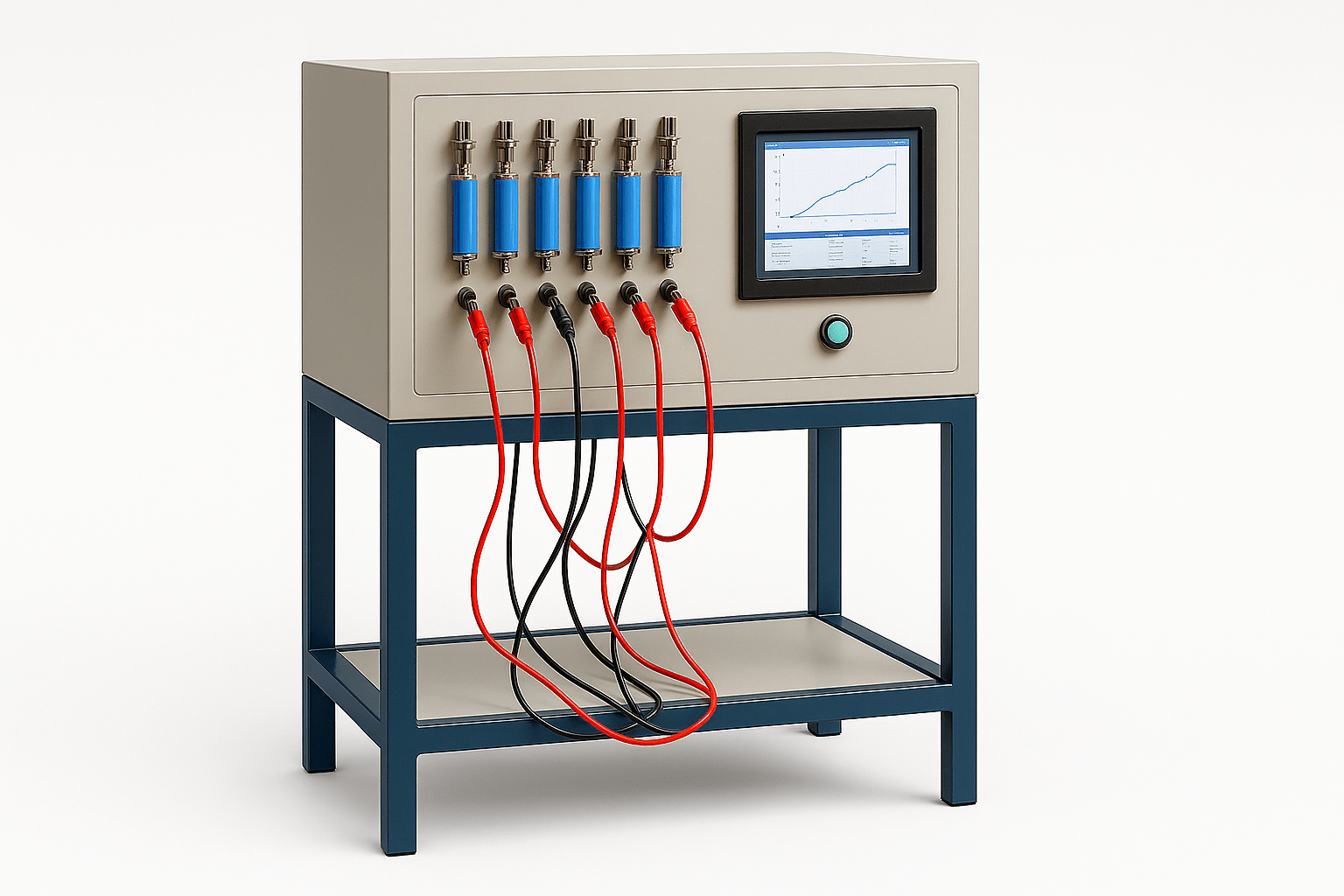

The Continuous Charging Test is an electrical safety and reliability test performed to evaluate the behavior, stability, and safety of batteries when they are subjected to a prolonged and uninterrupted charging condition at specified voltage and current levels. The test simulates real-world scenarios such as extended charging duration, charger malfunction, prolonged connection to power sources, or improper user behavior.
Specification/Features
- Number of Channels 6 independent channels
- Channel Isolation Electrically isolated per channel
- Output Voltage Range 0 – 60 V DC (per channel)
- Output Current Range 0 – 10 A DC (per channel)
- Max Power per Channel 500 W (typical)
- Total System Power ~3 kW
- Voltage Accuracy ±0.05% FS
- Current Accuracy ±0.05% FS
- Ripple & Noise ≤50 mVp‑p
