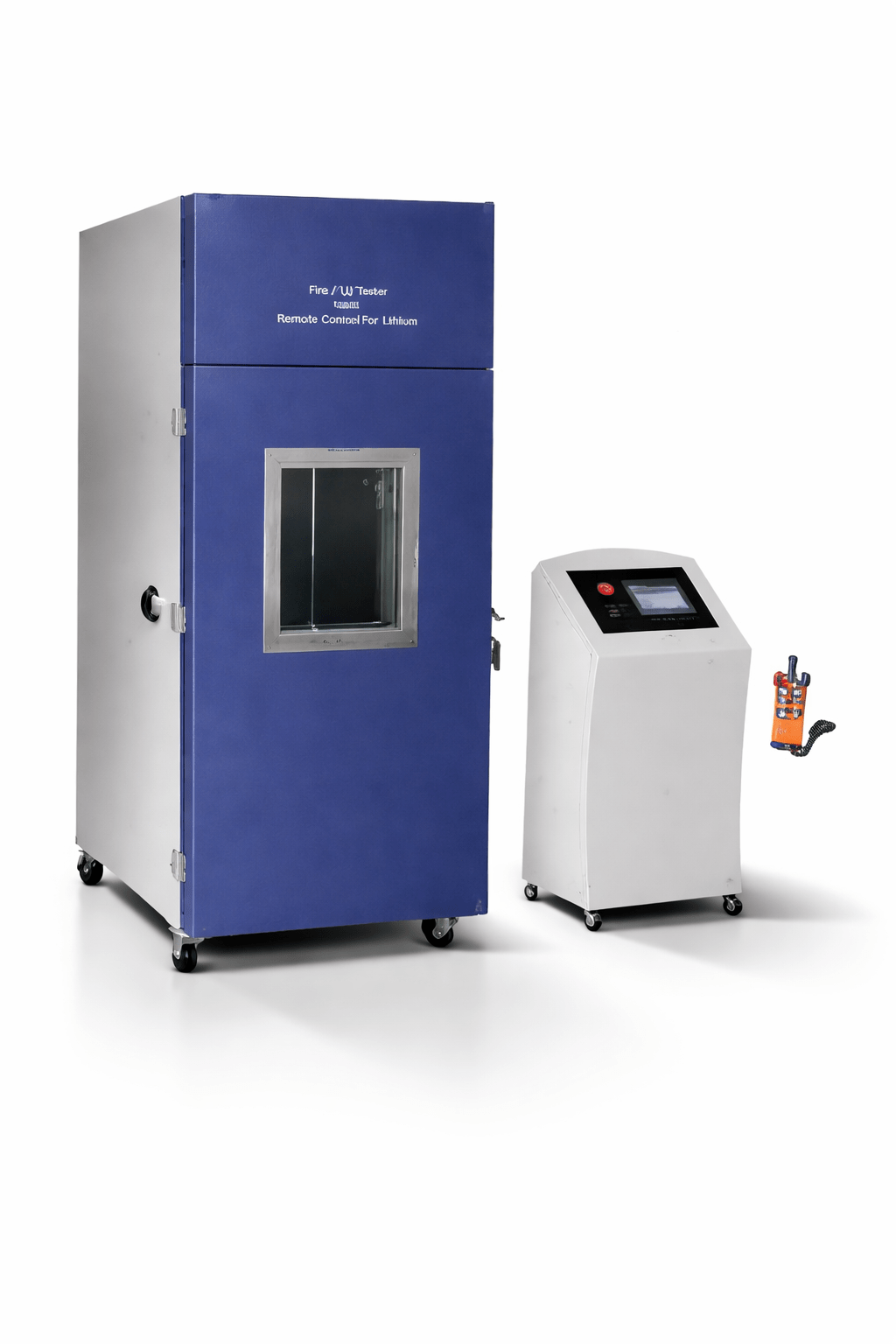

The External Short Circuit Test is an electrical abuse safety test conducted to evaluate the behavior, stability, and safety performance of batteries when their positive and negative terminals are intentionally connected through an external low-resistance path, causing a sudden and uncontrolled current flow.
Specification/Features
- Brand Ram Incredible Solution
- Country of Origin Made in India
- Current Range 0-240 Max upto 120V DC
- Working Voltage & Power
- Single Phase 208~240VAC+10%, 50/60Hz 3.6 KW max.
- Operation Environment
- Temperature: 25+3℃; RH: 30~90RH(%)
- Avoid electromagnetic interference
- Testing Chamber
- NRTL certified testing chamber is included with dimension of 18″x16″x18″, 80 L Capacity
- Calibrated at 50°C and 200°C max capability
- Related Item Need to work with Temperature Meter (For example #4939)
- Dimensions & Weight W 530mm x D 400 mm x H
- 935mm; 46kg
- Power Control Console
- Six high-speed operation modes
- CC,CR,CV,CW,CC+CV,CR+CW
- Over current, over voltage, over power, overheat, polarity
- reversed protection
- High-luminance VFD screen with two lines& four channels
- display
- Intelligent fan system fan will be automatically initiated
- according to the temperature
- Soft start time setting, carrying the power supplier according to the voltage value set
- Battery testing and short-circuit function
- Available of dynamic testing and rising edge and falling edge setting
- Supporting external trigger input and output
- External current waveform monitor terminal
- Supporting remote voltage compensation and multi-data storage
- Power-on-self-test, software calibration, and standard rack mount
- Communication mode: GPIB/RS232/RS485/USB.
- Compliance All Electric parts are NRTL Certified and
- ready to pass UL/MET/ETL/CSA/TUV certifications at extra
- cost.
