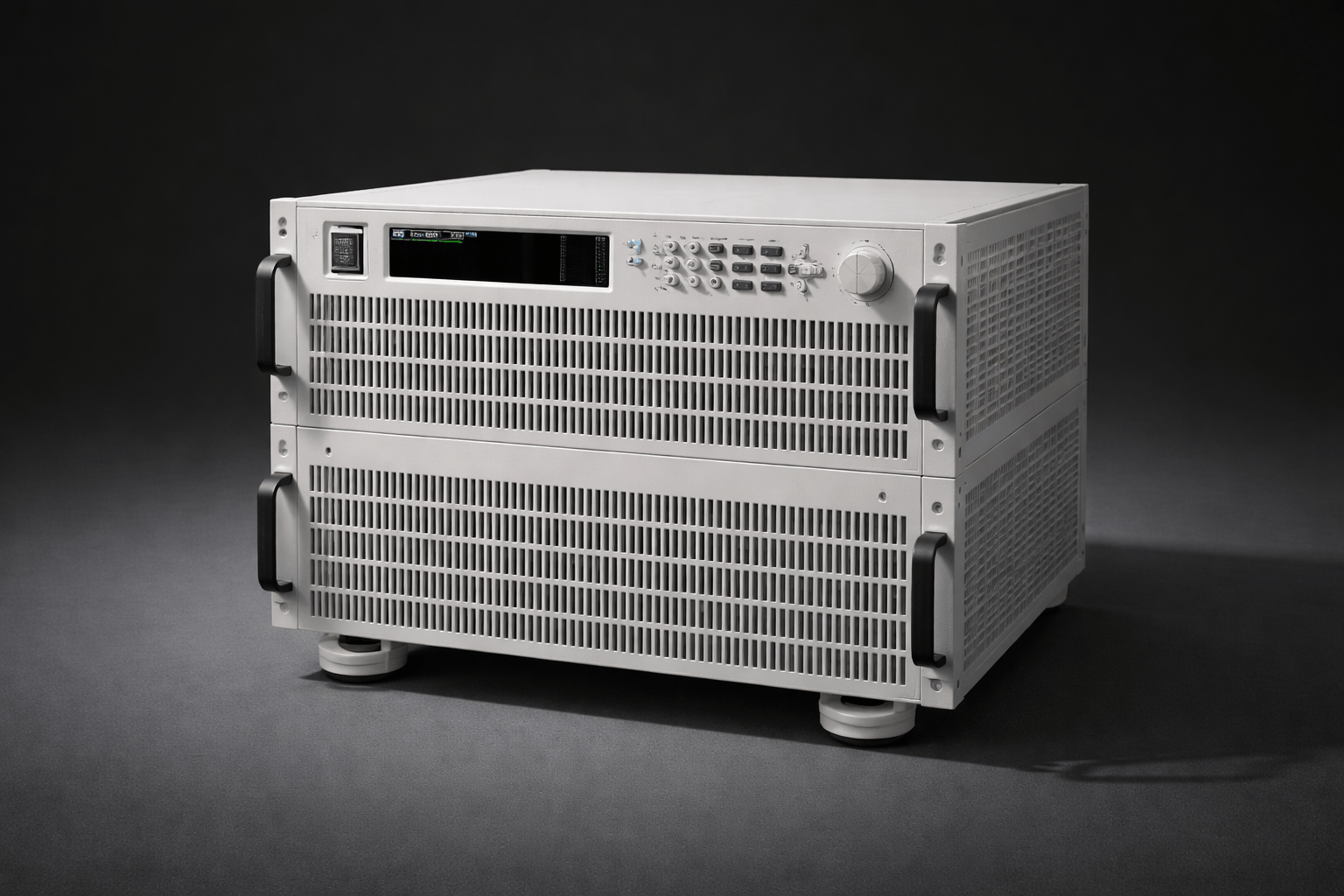

The Forced Discharge Test System is a high-power, programmable electronic load designed to safely and precisely discharge batteries, battery packs, power modules, and DC energy storage systems under controlled conditions.
Specification/Features
- Operating Mode Forced Discharge (Electronic Load)
- Input Voltage Range 0 – 600 V DC
- Discharge Current Range 0 – 200 A
- Maximum Discharge Power Up to 20 kW
- Voltage Accuracy ±0.05% of full scale
- Current Accuracy ±0.1% of full scale
- Power Resolution ≤1 W
- Minimum Load Voltage ≤0.1 V
