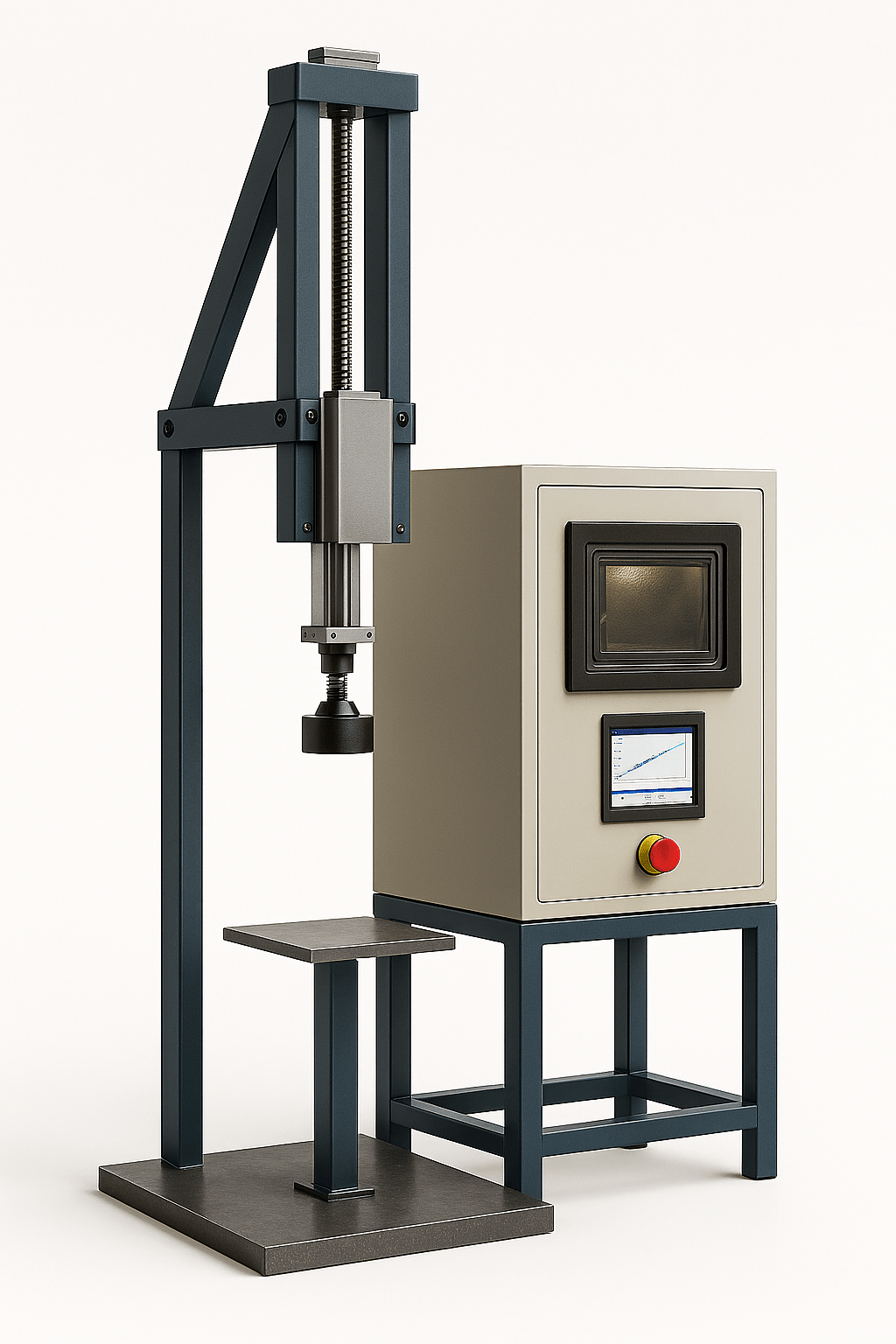

The Free Fall Test System is a precision‑engineered testing machine designed to evaluate the mechanical integrity, impact resistance, and shock tolerance of components, products, and sub‑assemblies when subjected to vertical free‑fall conditions.
Specification/Features
- Test Type Vertical Free‑Fall / Drop Test
- Drop Height Range 300 mm – 2000 mm (adjustable)
- Height Resolution 1 mm
- Maximum Test Specimen Weight Up to 30 kg
- Drop Mechanism Electromechanical release
- Guidance System Precision linear guide / rail
- Impact Surface Hardened steel anvil
- Platform Flatness ≤0.05 mm
- Repetition Accuracy ±1 mm
