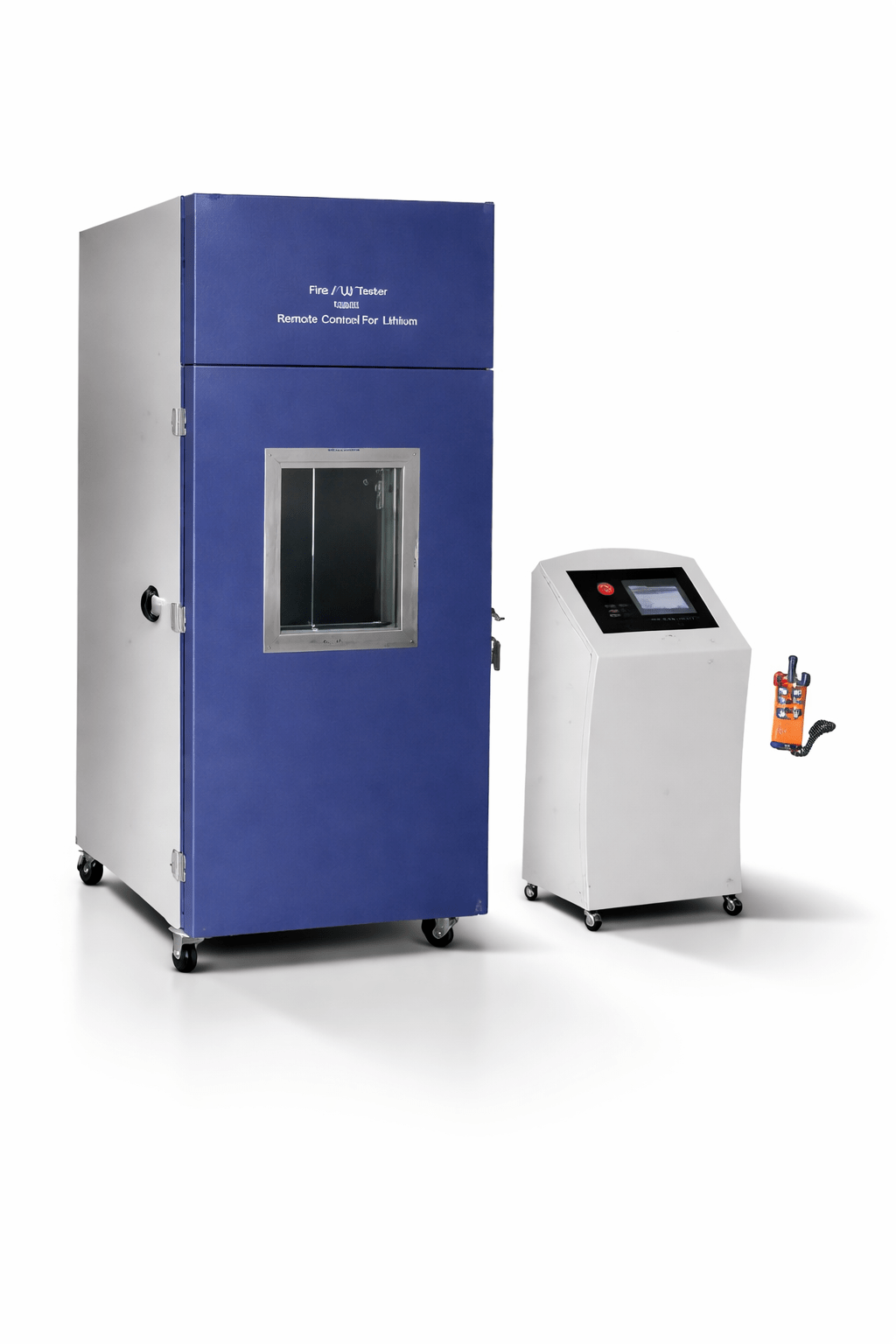

The Free Fall Tester with Remote Control for Lithium Batteries is a specialized mechanical abuse testing system designed to evaluate the safety, structural integrity, and impact resistance of lithium‑ion cells, battery packs, and battery‑powered devices when subjected to free‑fall and drop conditions. The equipment simulates accidental drops that may occur during manufacturing, handling, transportation, installation, or end‑use.
Specification/Features
- Power
- 208 – 240VAC , single phase, 50/60Hz
- 110VAC is available upon request via a 1500W transformer
- Power consumption: 1KW
- Cell compatibility
- Compatible with battery pack up to 5 kg net weight
- Testing Standards: IEC62133
- Sample Holder
- Multi vacuum chunks are built in for hold battery pack sample
- The heavy duty vacuum pump can be purchased with extra cost.
- Max. sample size 100x100mm (3.93×3.93″) ( no limited at length )
- Free Fall Height 300 mm(11.8″) to 1500mm(59″) adjustable
- via electric motor at control panel
- Chamber
- Anti-explosion reinforced double layer steel chamber
- Inside chamber: made of 1 mm thickness cold rolled SS304 with
- tensile strength > 500 Mpa
- Outside casing: made of 3 mm thickness annealed A3 steel with
- Tensile strength > 400 Mpa
- Explosion proof window: 382mm Lx332mm W (15″Lx13″W)
- Double layer 5 mm thick anti-explosion glass with sandwiched
- shattering proof film
- Max. Working Space in the chamber: L300mm x W250mm x
- H1000mm (11.8″x9.8″x39.3″)
- Build-in illuminator
- Rolling wheels are installed on bottom easy transportation.
- Control Unit
- 6″ color touch screen control panel for operating and setting
- parameters
- Electric motor with worm gear reducer for raising and lowering the
- weight
- In the case of electrical outage, weight will be lowered and locked
- in position automatically
- Once parameter setup on the touch screen, a wireless hand-hold
- remote controller will operate machine within 10 meters distance
- for the safest operation
- Shipping Dimension 37″x36″x93″, 942LB Compliance
- All electric components ( >24V) are UL or CSA certified.
- The machine is ready to pass TUV(UL61010) or CSA certification at
- extra cost.
- Please let us know if need UL or CSA in advance, so we can use the
- components accordingly.
- Dimension (WxDxH) W800mm x D700mm x H1815mm
- (31.5″x27.5″x71.5″)
- Weight 772 Lb (350Kg)
- Warranty One-year limited manufacturer’s warranty with
- lifetime support; extended warranty available upon request at
- additional cost.
