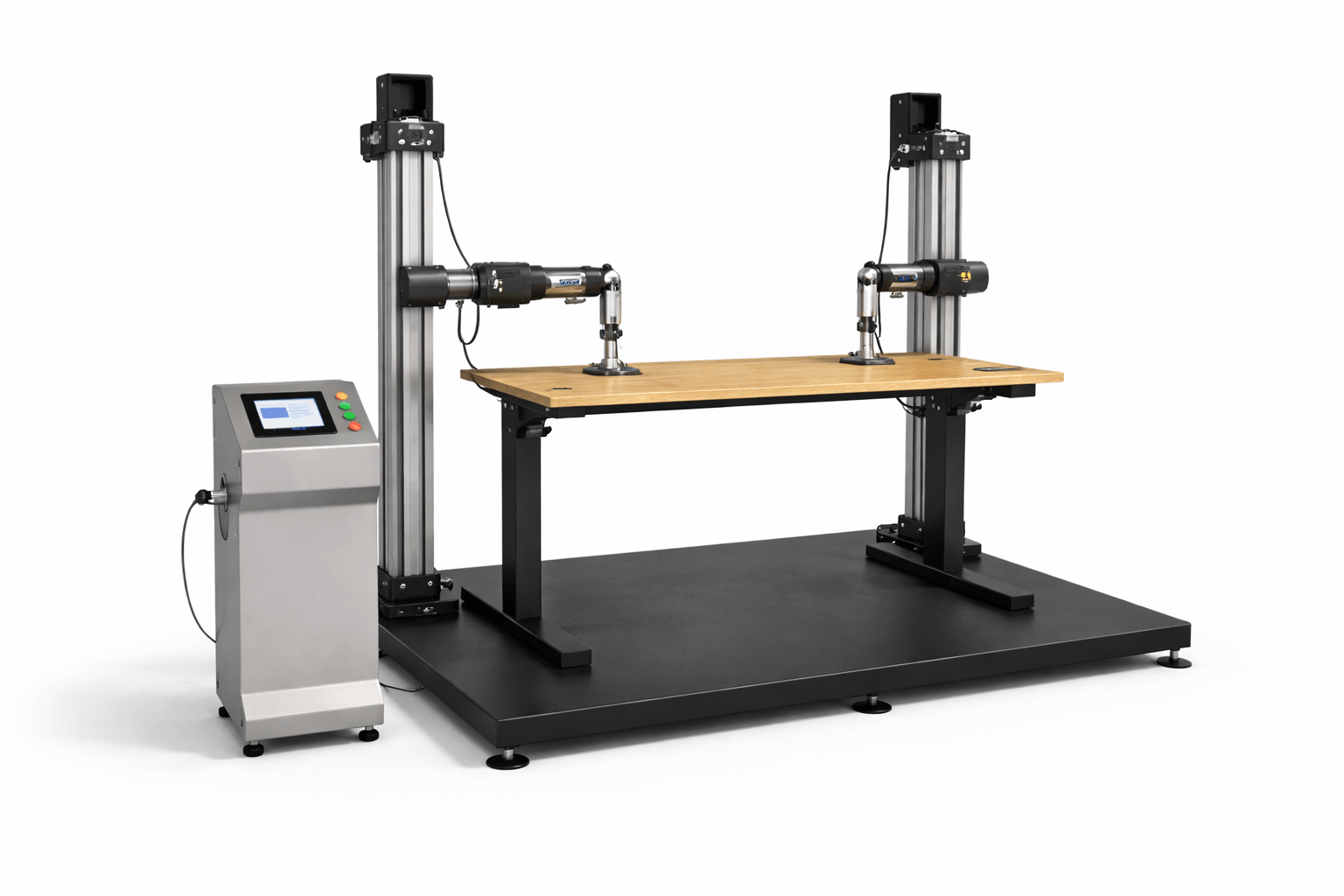

The Height-Adjustable Desk Cycling & Controller Endurance Rig is a precision test system designed to evaluate the durability, reliability, and functional life of electrically height-adjustable desks and their control systems.
Specification/Features
- Actuator Type: Servo / electric linear actuators
- Number of Actuators: 2 (independent or synchronized)
- Maximum Vertical Load: 100 – 300 kg (adjustable)
- Load Distribution: Symmetrical / asymmetrical configurable
- Speed Range: 5 – 40 mm/s (programmable)
- Stroke Length: Up to 650 mm
- Cycle Definition: One complete up + down movement
- Cycle Speed: Programmable
- Maximum Cycles: Up to 50,000 – 100,000 cycles
- Dwell Time: Adjustable at top & bottom positions
- Electrical Supply: 220–240 V AC, 50/60 Hz
- Control Voltage: 24 V DC
- Power Consumption: Approx. 1.5 – 3 kW
