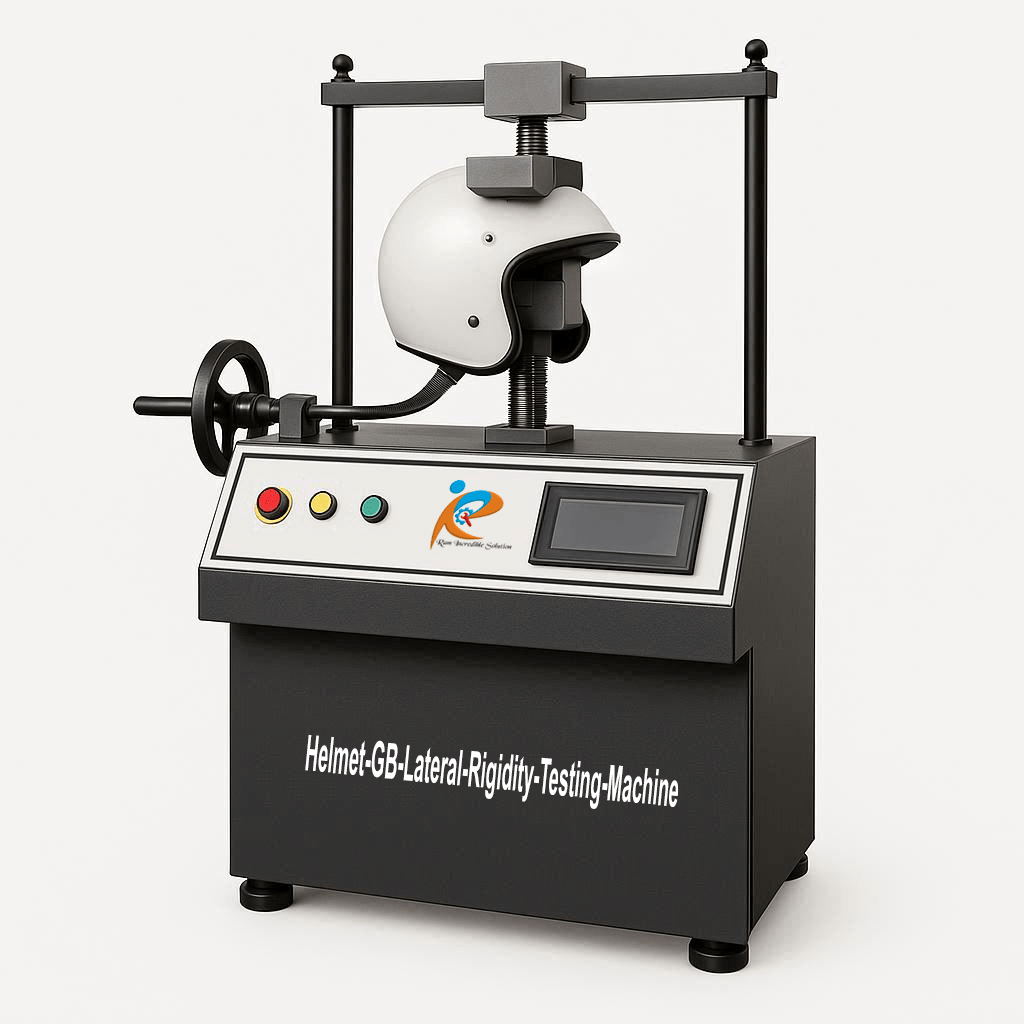

This machine is used to apply controlled lateral forces to a helmet mounted on a headform and measure how much the helmet deforms under those forces. It evaluates whether the helmet’s shell and structure resist sideways compression and maintain protective integrity as required by the relevant safety standards during use.
Specification/Features
- Its use stainless steel rod, thread free lifting and falling, its easy tooperation
- Its use high accurate pressure sensor, can be real-time display
- test force value and automatic save the max force value
- Its use high accurate electronic ruler, automatic display test
- distance, resolution is 0.1mm, strict
- Conform the standard require
- Measuring the max displacement 230mm
- (displacement display Accuracy 1mm),
- measuring the max force value range 750N.
- Enough satify standard’s test displacement and force value require
- Can automatic set time, dispaly time accuracy is 0.1s
