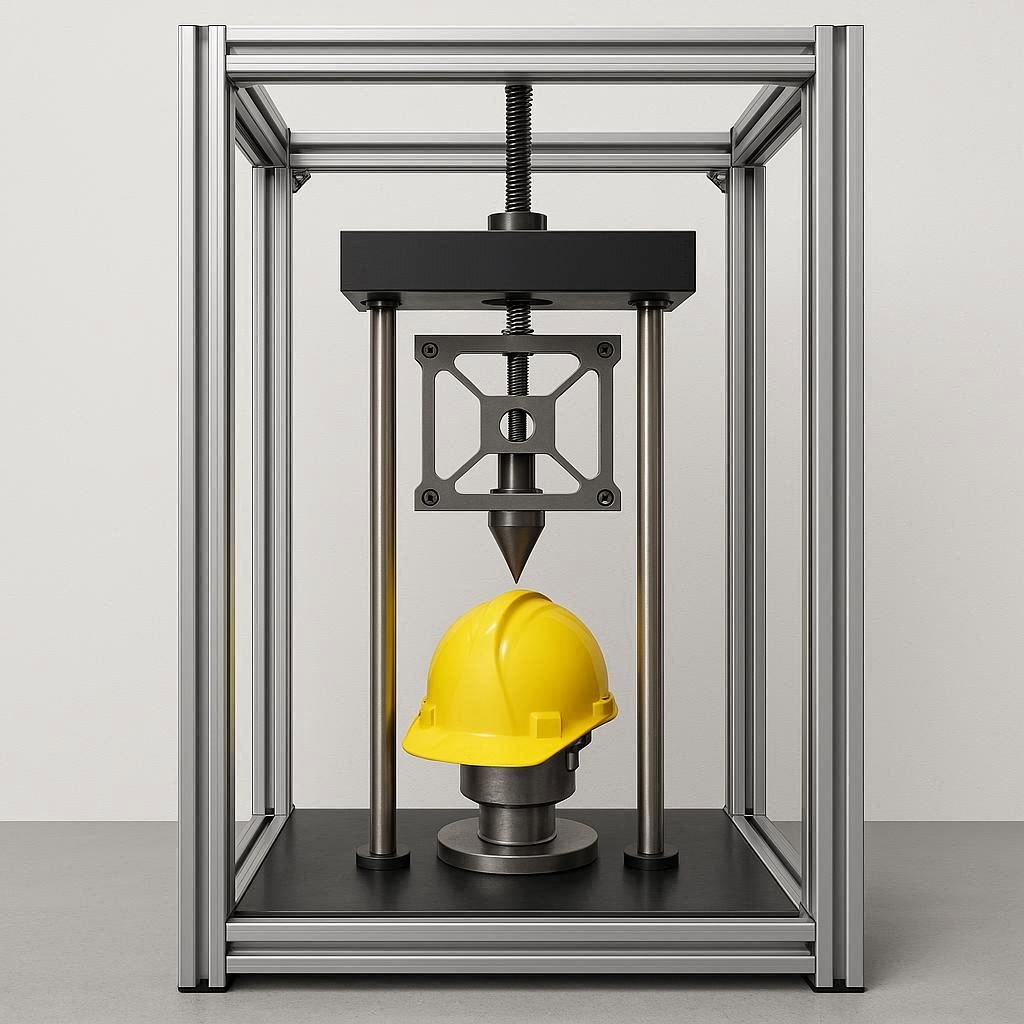

The Helmet Impact Absorption Testing Machine is a laboratory testing apparatus used to evaluate the energy absorption capability of safety helmets under controlled impact conditions. It applies a standardized impact to a helmet mounted on a headform and measures the transmitted force or acceleration to assess helmet protective performance. The machine is widely used for quality control, product development, and compliance testing as per helmet safety standards.
Specification/Features
- Product Type: Impact Testing Machine
- Automation Grade: Automatic
- Brand: Ram Incredible Solution
- Warranty: One Year
- Country of Origin: Made In India
- Power Supply: 220V 50Hz
- Impactor mass: 5.0kg
- Impactor striking face should be hemispherical and the radius: 50mm+1mm
- Impact height: 1000mm+5mm
- Max capacity: <1000KN
- Load Way: Electronic Load
- Loading Method: Static Load
- Display: Computer
- Acceleration sensor: Uniaxial or T triaxial
- Control ways: Computer
- Software Function: Data Can Save and Export, Print etc
- Testing machine total height: Approx 5.26m
