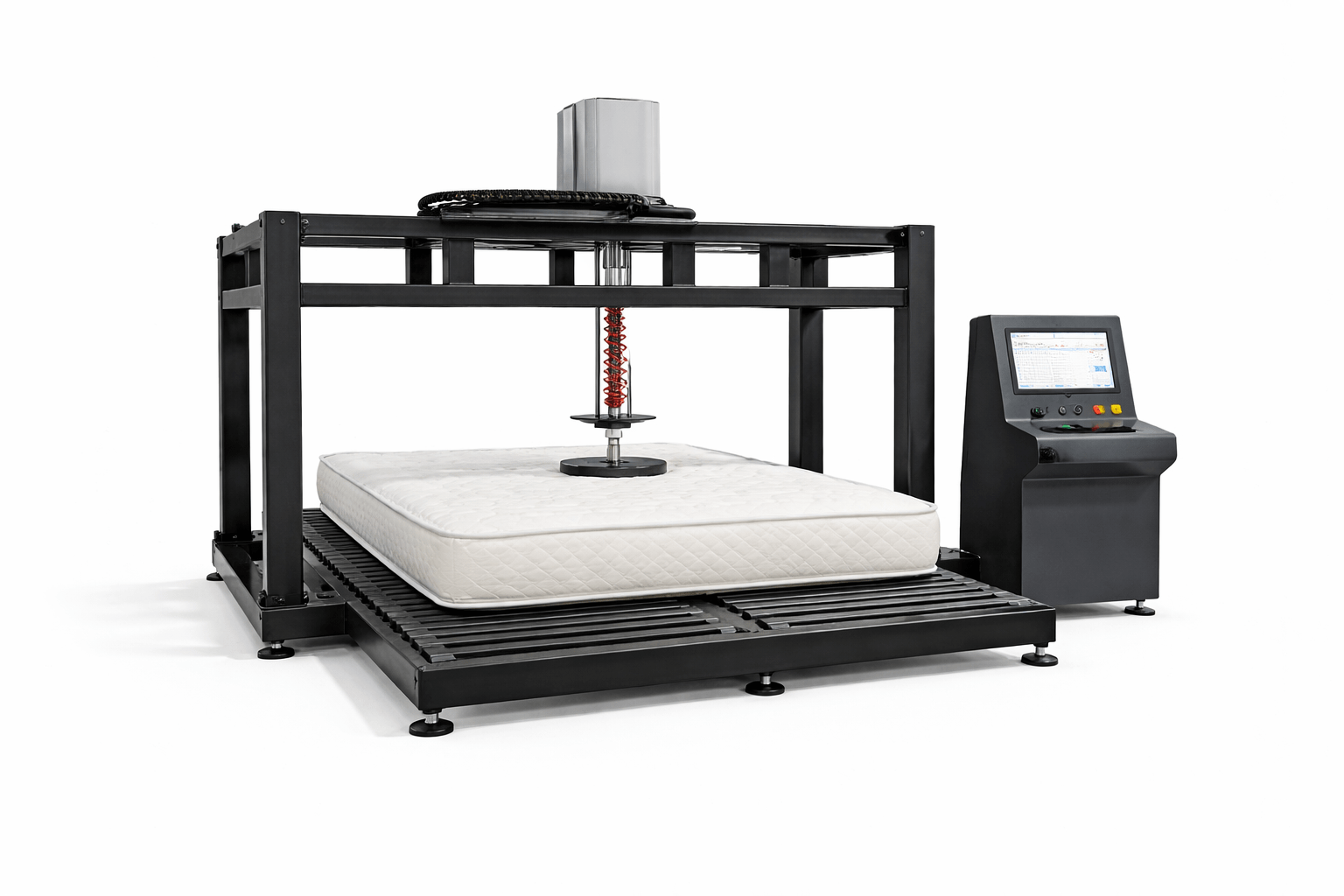

The machine combines cyclic rolling, impact loading, and static force application to assess how a mattress performs over time when subjected to repeated human body movements, sitting, lying, and sudden loads. It is widely used by mattress manufacturers, quality control laboratories, R&D centers, and certification bodies for product development and compliance testing
Specification/Features
- Roller Type: Cylindrical roller / barrel roller
- Roller Diameter: 300 – 500 mm
- Rolling Speed: 10 – 30 cycles/min (adjustable)
- Rolling Stroke: Full mattress length
- Maximum Cycles: Up to 100,000 cycles
- Impact Type: Free-fall guided impact
- Impact Mass: 10 – 50 kg (interchangeable)
- Drop Height: 50 – 300 mm (adjustable)
- Head: Steel / rubber-coated spherical impactor
- Impact Frequency: Programmable
- Load Range: 50 N – 5000 N
- Load Accuracy: ±1%
- Load Head: Circular padded indenter
- Displacement Measurement: Digital displacement sensor
- Electrical Supply: 220–240 V AC, 50/60 Hz
- Compressed Air: Optional (for pneumatic configurations)
