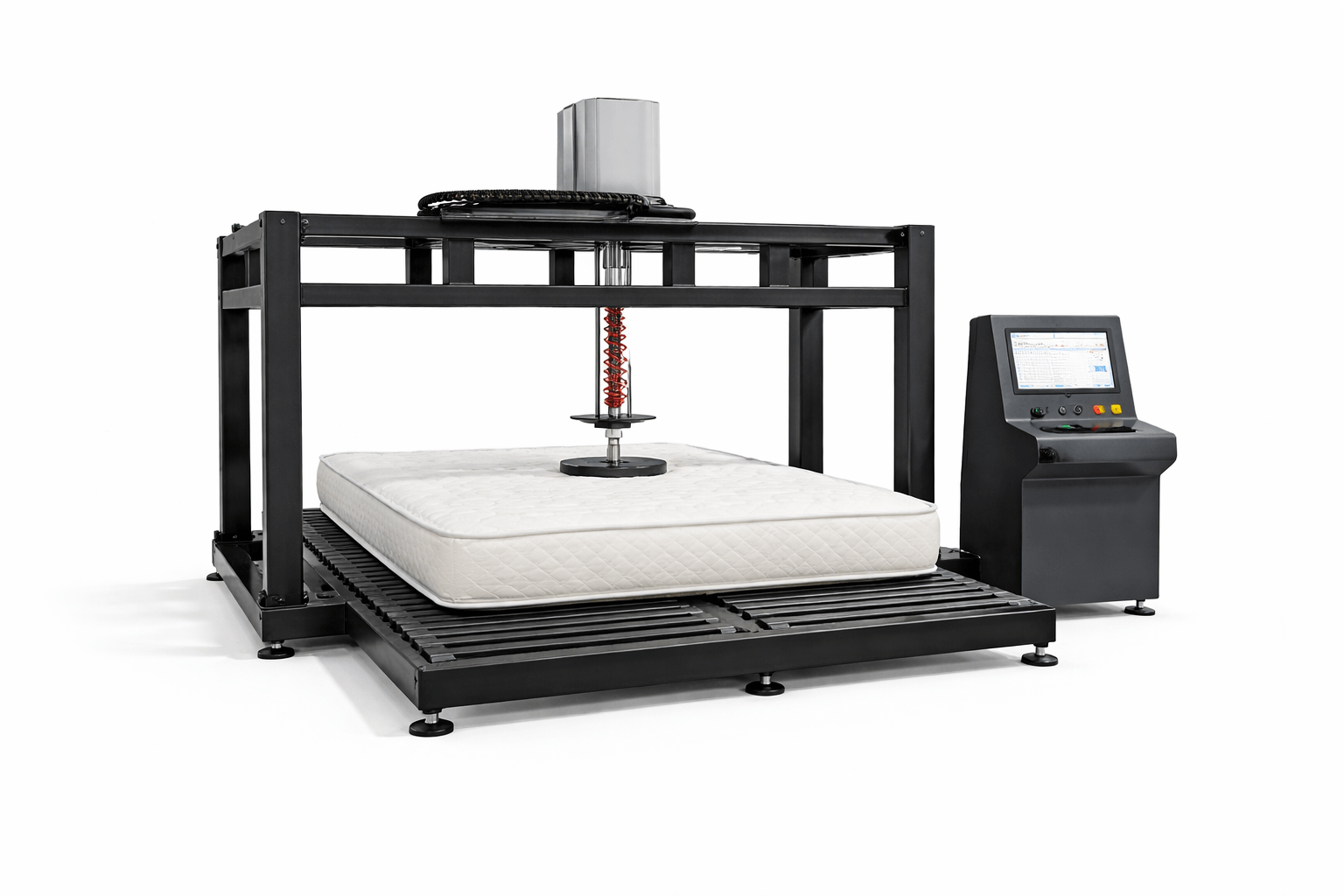

The Mattress Hardness Tester is used to determine the firmness and load‑deflection characteristics of mattresses by applying controlled vertical force through a standardized loading plate. The equipment measures mattress resistance to compression, providing objective hardness values and assessing comfort, support performance, and compliance with international mattress testing standards
Specification/Features
- Test Type: Mattress hardness / firmness measurement
- Loading Method: Servo‑controlled or pneumatic vertical loading system
- Loading Plate: Circular steel compression plate (standard Ø 355 mm or as per standard)
- Maximum Load Capacity: Up to 1,000 N (configurable)
- Load Accuracy: ±1% of applied load
- Displacement Measurement: High‑resolution linear sensor
- Test Modes: Static load, stepped load, load‑deflection test
- Hardness Index Output: Force vs. deflection curve
- Mattress Size Compatibility: Single to King size
- Control System: PLC with touchscreen HMI and data logging
- Frame Construction: Rigid welded steel structure
- Safety Features: Emergency stop, overload and travel limit protection
- Power Supply: 220–240 V AC, 50/60 Hz
