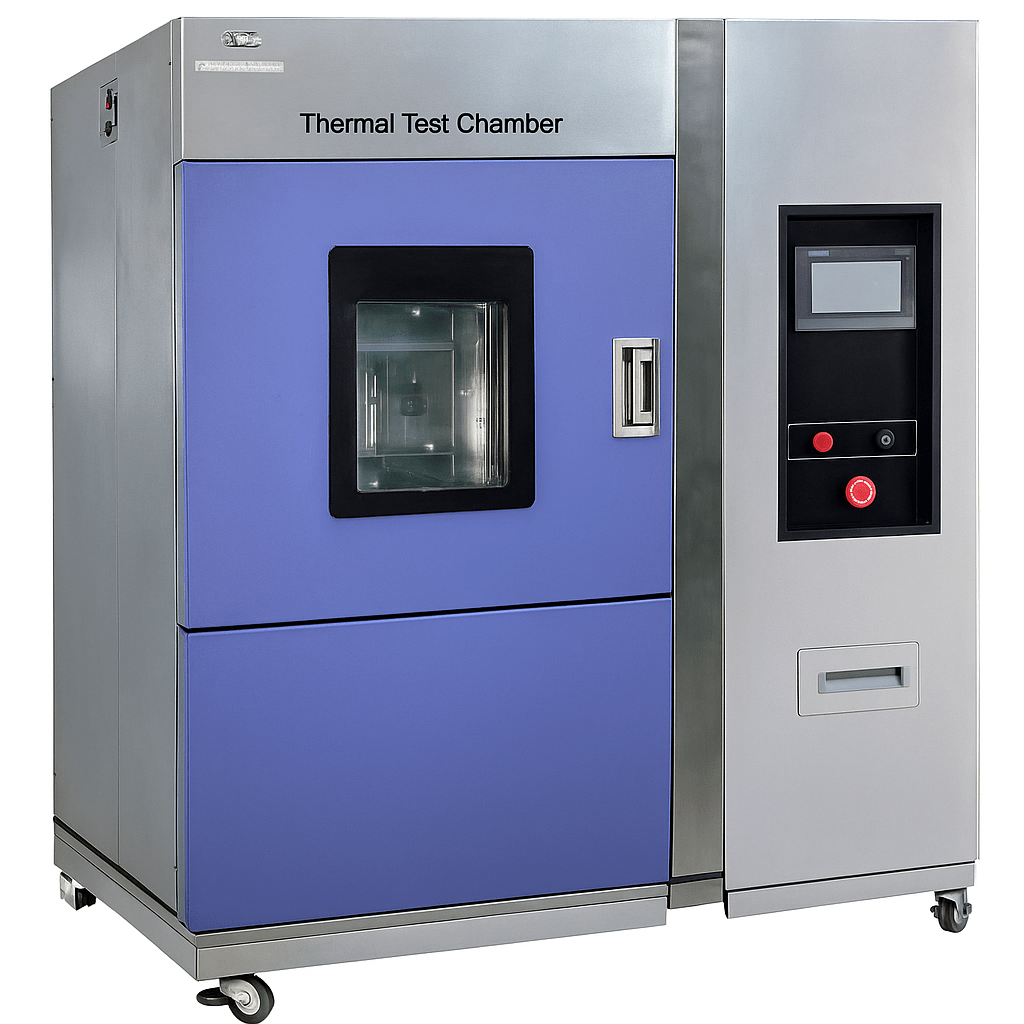

The Programmable Fast Thermal Test Chamber is an advanced environmental testing system designed to perform rapid and precise temperature cycling on electronic components, batteries, materials, and assemblies. It simulates extreme thermal conditions to evaluate product reliability, safety, and performance under fast heating and cooling rates.
Specification/Features
- Brand Ram Incredible Solution
- Country of Origin Made in India Power
- Voltage: 220V AC(single phase)/380VAC±10% ( 3 phases, 50/60 Hz)
- Maximum: 40-50A AC
- Test Chamber
- SS304 stainless steel chamber with of minerals wools as the thermal insulator
- Chamber dimensions: As per requirement
- Window: double layers
- Capacity: As per requirment
- Vent Port: Vent port available built in the back for releasing pressure or smoking in the case battery Control Panel
- 7’’ touch-screen control panel to interface the machine
- Completely programmable, and each program can be used as cyclic in nature
- Cooling & Heating System
- Dual refrigeration compressor
- Refrigerant: R404A, environmental friendly
- Stainless heater tube
- Built-in beep alarm for over-heated and over-current protection
- Temperature Range: programmable from -70ºC to + 150ºC.
- Temperature accuracy: ±0.5ºC
- Temperature uniformity: ± 1.5ºC
- Max. Heating rate: Average: 5ºC/min
- Max. Cooling rate:
- 5ºC/min (+75ºC to -40ºC);
- 1ºC/min (-40ºC to -70ºC)
- Chamber size Available
- Other chamber size options:
- 80L (Chamber size: 400W x 500H x 400D mm, Machine Dimensions: 980x1590x910 mm)
- 225L (Chamber size: 500W x 750H x 600D mm, Machine Dimensions: 1170x1840x1030 mm)
- 408L (Chamber size: 600W x 850H x 800D mm, Machine Dimensions: 1170x1950x1320 mm)
- 800L (Chamber size: 1000W x 1000H x 800D mm, Machine Dimensions: 1570x2070x1320 mm)
- Testing Criteria UN38.3 Li-Ion Battery Transportation Safety Testing
- Temp. Range Ambient – 200℃±2ºC
- Control Accuracy ±0.5℃
- Temp. Uniformity ±3.0℃( No load)
- Temp. Rising RT – 150℃ (≧5℃/min, liner with load 40kg module)
- Temp. overshoot ≦2.0℃
- Testing Room Dimension W1000 X D800 X H1200 mm
- External Chamber Dimension W1400 X D1200 X H1840 mm
- External chamber Material CRC sheet , Powder Painted
- Observation Window 300 X 300mm (18mm Tempered Explosion Proof Glass)
- Heating Power About 11.5 KW
