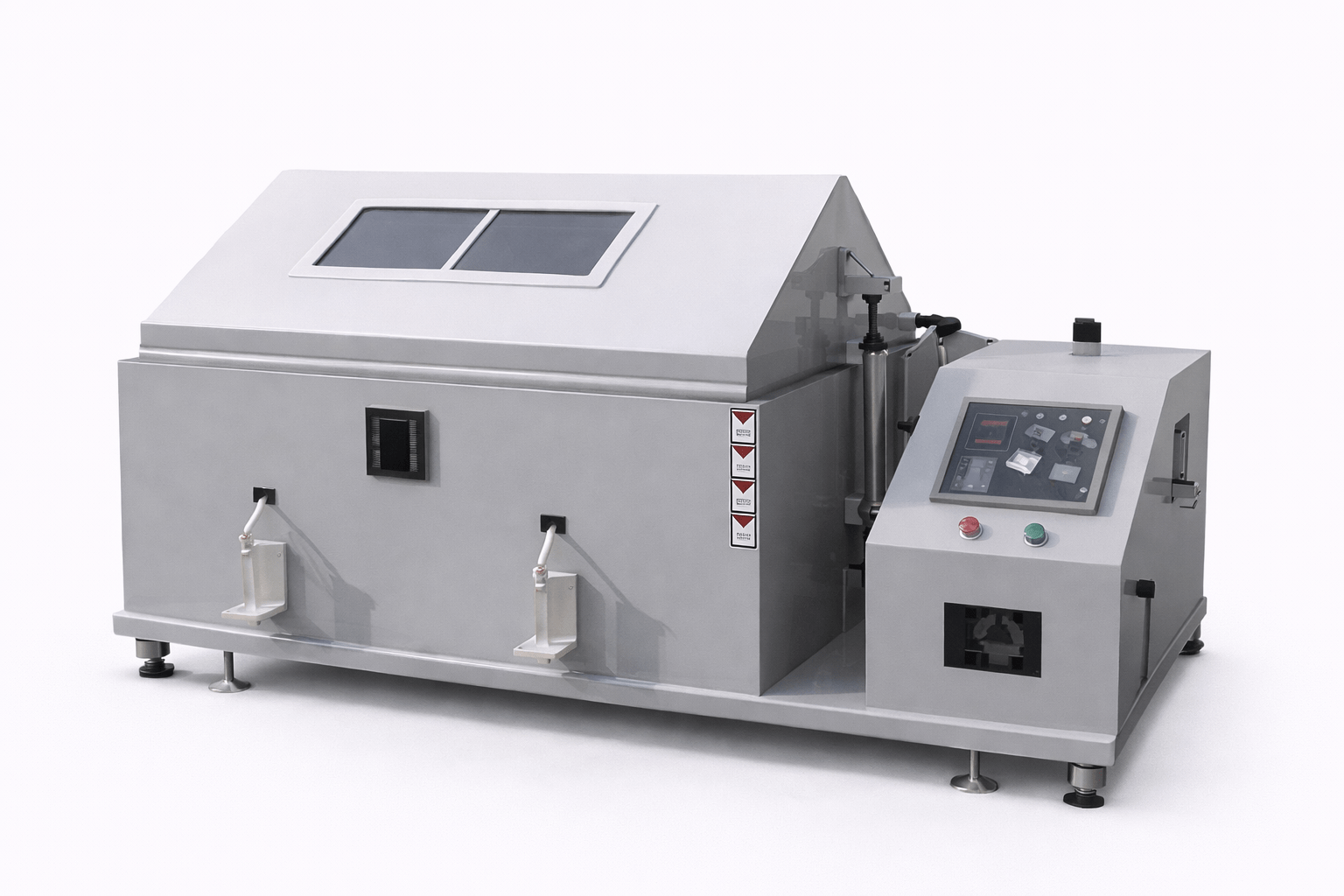

Salt Spray Tester is a corrosion testing chamber used to evaluate the resistance of metallic and coated materials to corrosive environments. It generates a controlled salt mist (NaCl solution) inside a sealed chamber at specified temperature and pressure conditions to simulate accelerated corrosion as per international standards. The system features precise temperature control, uniform fog distribution, programmable test cycles, and corrosion-resistant construction for reliable and repeatable test results.
Specification/Features
- Control method: Fully automatic by PLC
- Working Volume : 480L
- Dimension: 1200mm x 800mm x 500mm
- Power Requirements: 220/230V, 50Hz, single phase
- Temperature Range salt: 35°C to 47°C ±1°C Water test
- Corrosion resistant : 50°C to 63°C Test
- Humidity Range : 95%RH ± 3%
- Salt fog fallout rate: 1 ~ 2ml per 80cm2 per hour
- Compressed Air pressure: 1.00 ±0.01kgf/cm²
- Spray Pressure : 0.8 – 2 kgf/cm2
- Fully automatic by PLC
