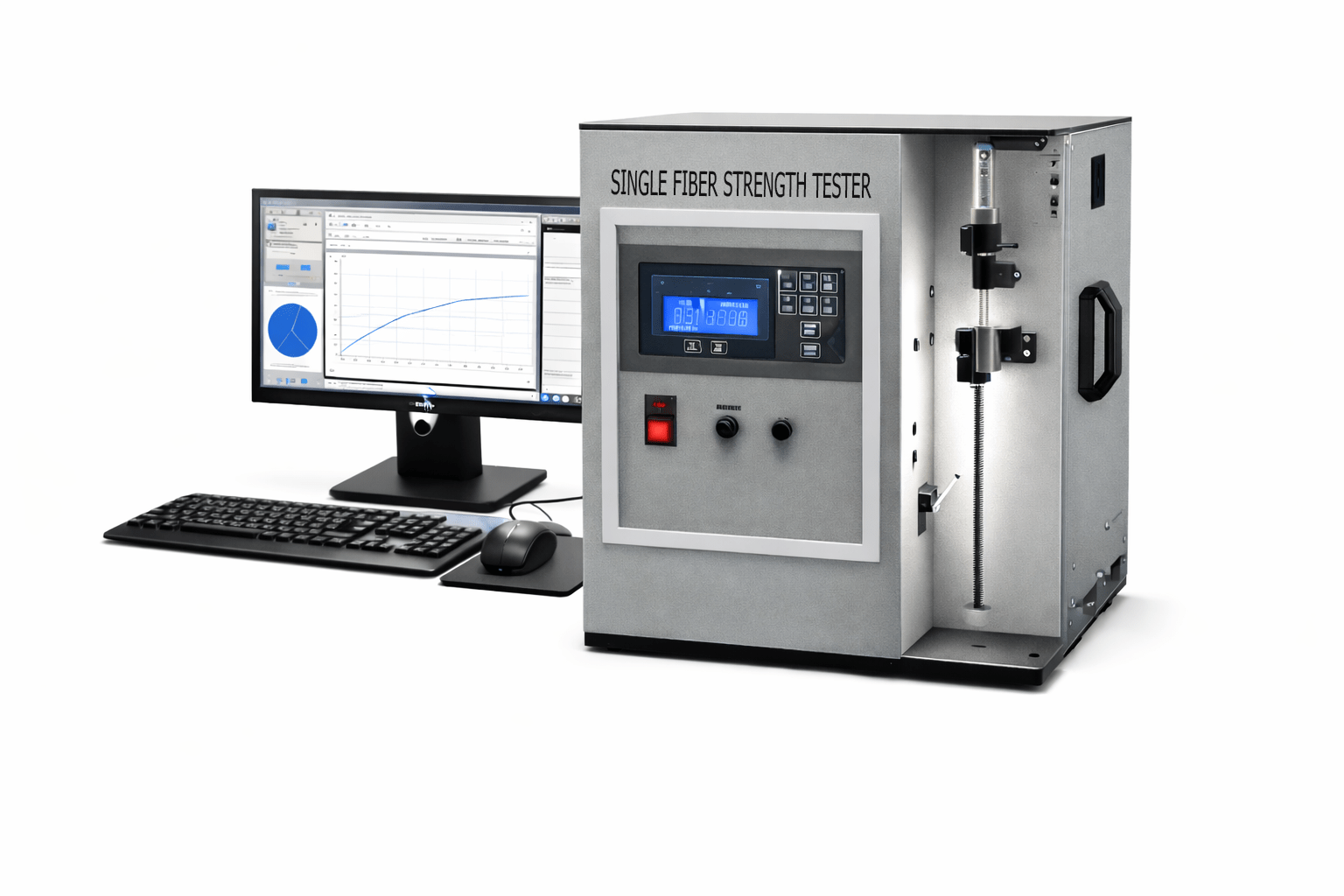

This instrument tests the tensile strength, elongation, constant elongation load, constant load elongation, initial modulus, time of break, and CV value of single fibers (such as cotton, wool, silk, and chemical fibers) in dry or wet states.
Specification/Features
- Force Rating: Ranges can vary, for example, up to 999.9 gm with 0.1 gm accuracy, or a load capacity of 5000N/10000N for larger textile tensile testers.
- Measuring Accuracy: Typically ≤±0.05%F.S.
- Testing Speed: Variable, often ranging from 2 to 400 mm/min or more, with digital speed control.
- Stroke Space/Gauge Distance: Typically up to 200mm or 800mm depending on the model.
- Elongation Resolution: Often 0.01mm or 0.001mm
- Clamping: Samples are typically held by pneumatic clamps.
