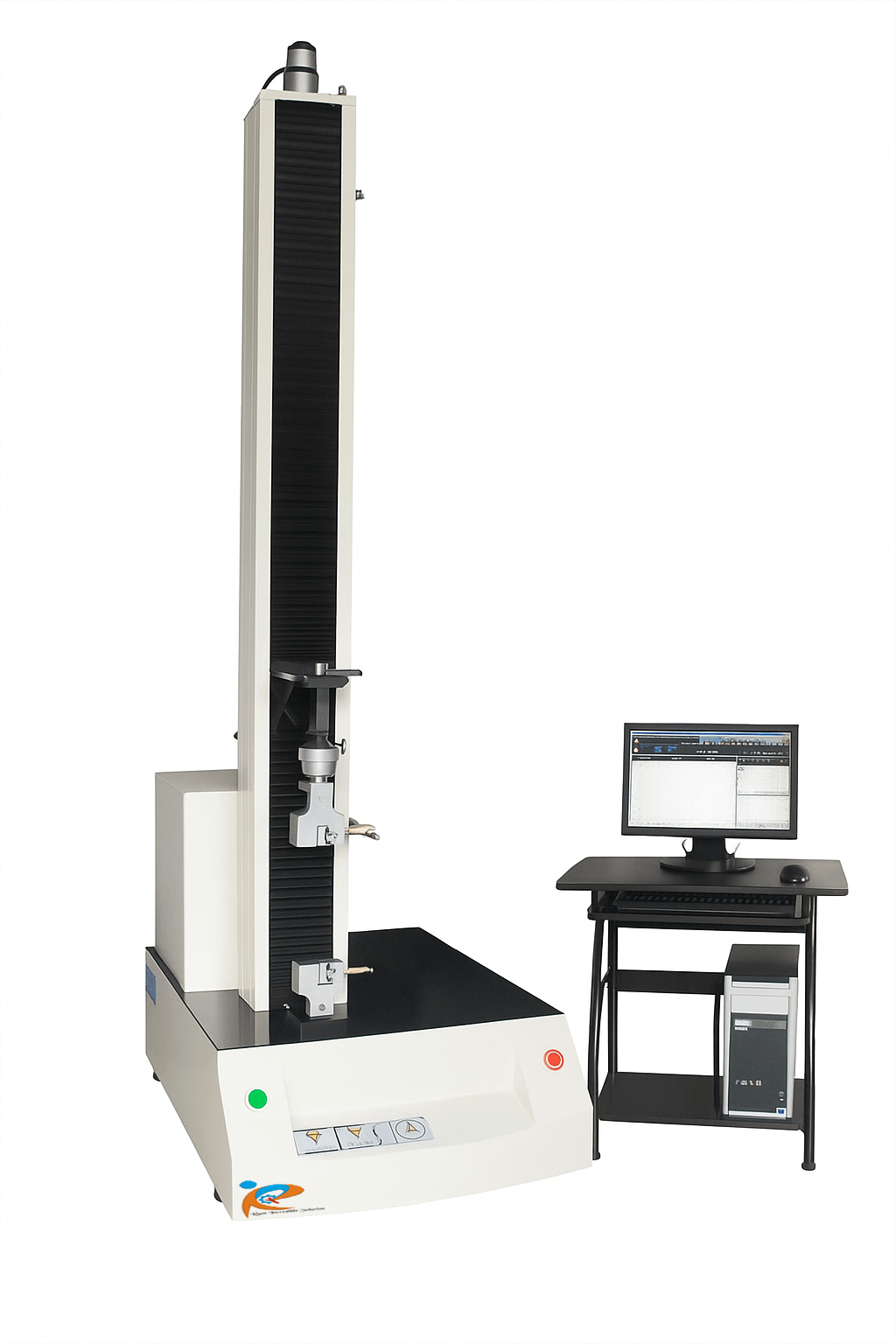

a SDT-504F universal testing machine, also referred to as a computerized or digital tensile strength tester It is a desk-model, single-column tension and compression testing machine.
The machine is electro-mechanical with a servo drive design and is microprocessor-based.
It is powered by an AC servo motor and a digital servo speed control system, ensuring stable and smooth operation.
It includes software control (Windows-based) and features an optional five-inch color LCD touch screen.
Basic functions include peak hold, cycle mode, break point detection, auto-feed, and judgment functions.
Specification/Features
- Maximum Load Capacity: 5kN (approx. 5000N).
- Test Force Range: 0-1000N (for some models).
- Accuracy: Better than ±1% of the indication value
- Voltage: 220V.
- Test Speed: 0.1 to 500 mm/min.
- Stroke (Distance from Table to Loadcell): Max. 580mm (for L type).
- Output: USB
