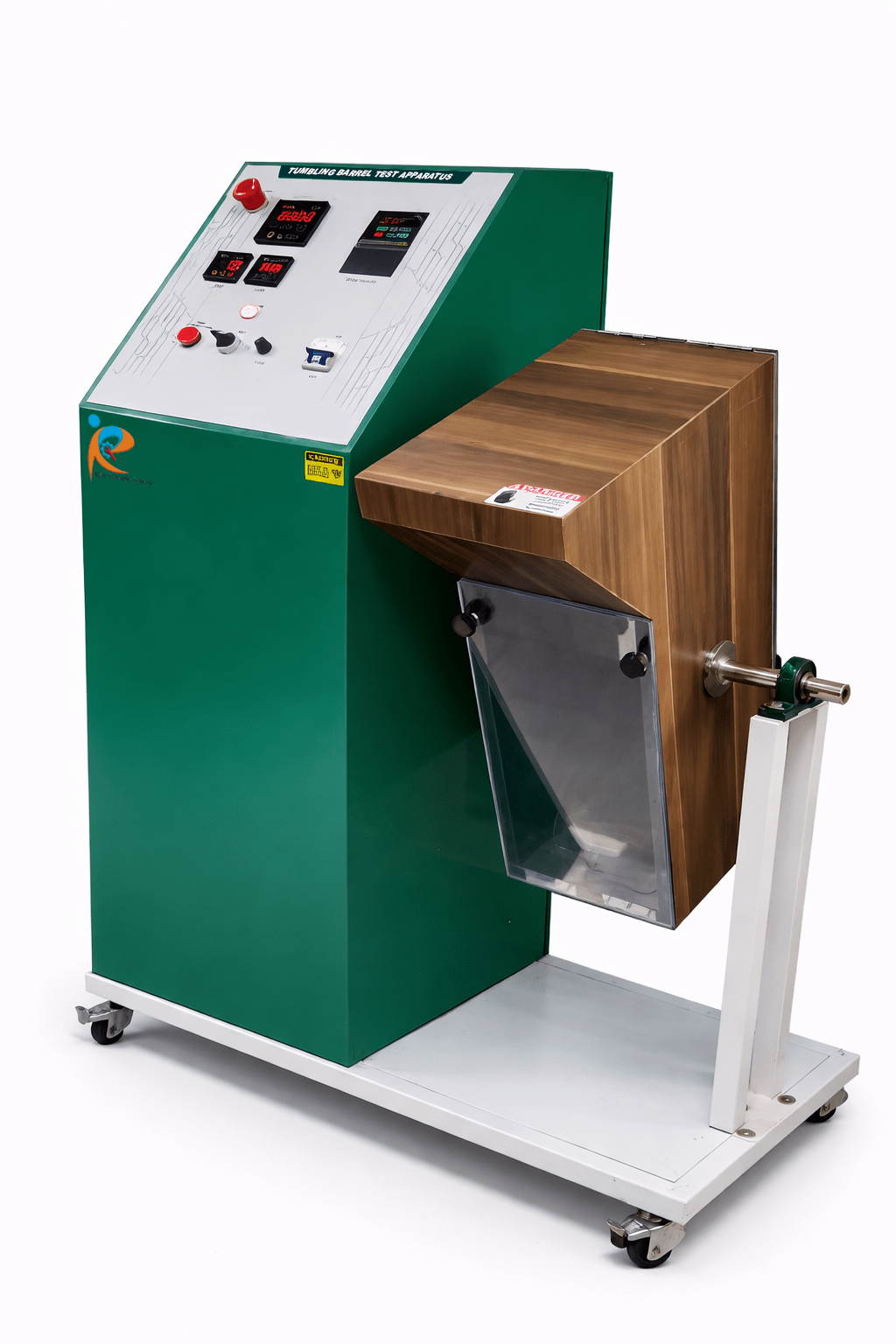

Tumbling Barrel Apparatus is specially designed and manufactured for use in laboratories involved in testing Appliances, Electrical Accessories, Luminaries and other related Electro technical products. It is used to perform the test specified in many standards to determine compliance with safety requirements, particularly mechanical strength of test samples. SCR Elektroniks Makes Counter to count ON/OFF of Limit switch.
Specification/Features
- Drop Height: 500 mm.
- Base Plate: 3 mm thick Steel Plate.
- Rotation Speed : 10 Falls per minute (5 rpm).
- Control: Digital Pre Set Counter, 4 digits, with battery back-up.
- Sensor: Non contact Inductive Proximity Sensor, 12 mm diameter.
- Indicator: Power ON, Barrel ON, End of Test (Audible beeper).
- Access: Through sliding acrylic cover with magnetic latch & key lock..
- Drive: AC Induction motor, geared, with reduction pulley and V-Belt..
- Power: 110 V AC, 50/60 Hz single phase.
- Safety Fuse : 2 Amp., slow blow, glass cartridge, 35 x 6 mm.
- Dimension : 450 mm W x 750 mm D x 1000 mm H approximate.
