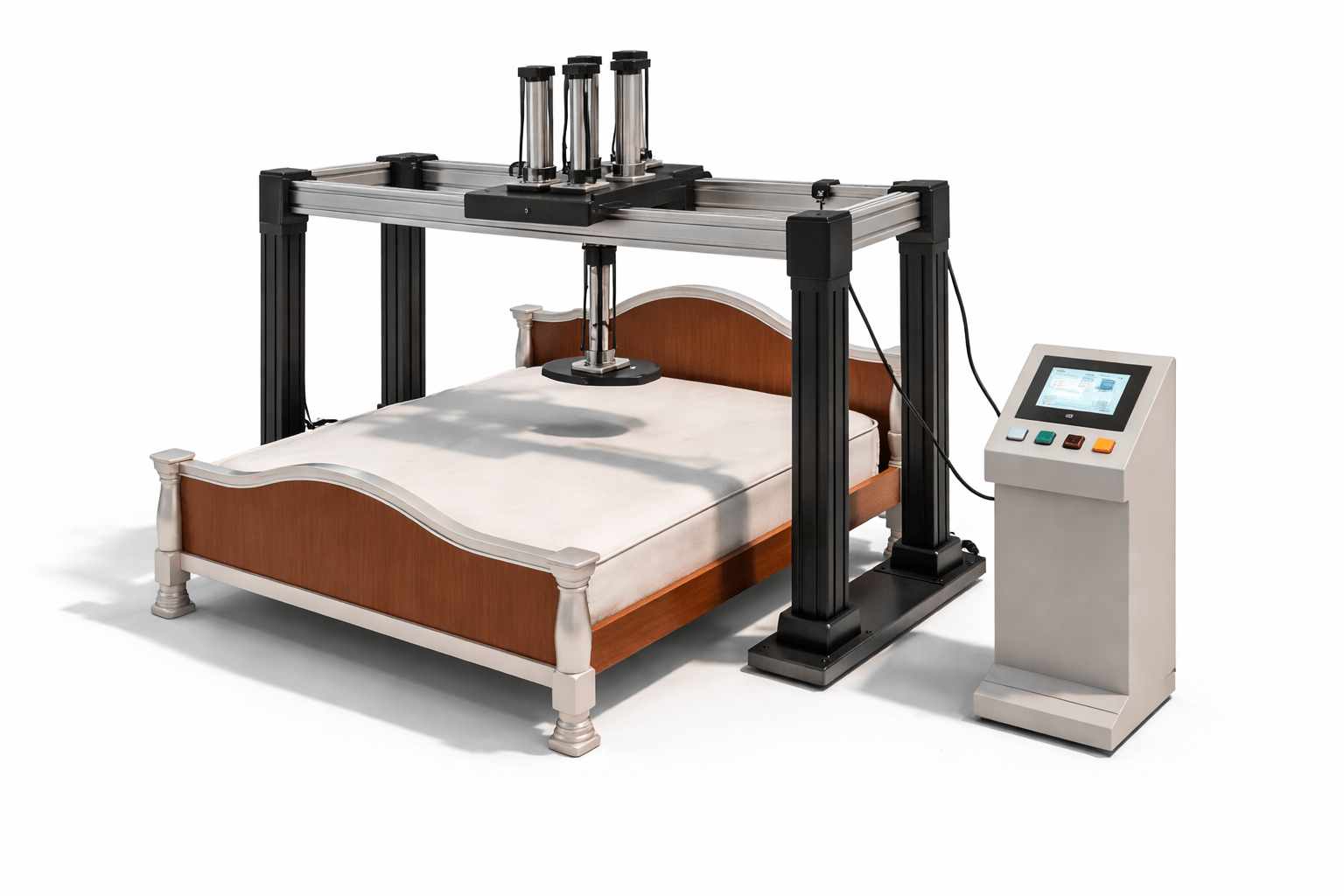

The Vertical Load Testing Machine is designed to evaluate the strength, stability, and load-bearing performance of beds, mattresses, furniture, and similar products by applying controlled vertical static or cyclic loads.
Specification/Features
- Test Type: Vertical static and cyclic load testing
- Loading Method: Servo-controlled or pneumatic vertical actuator
- Maximum Load Capacity: 1,000–3,000 N (configurable)
- Load Application: Single or multiple loading pads
- Load Accuracy: ±1% of applied load
- Stroke / Travel: Adjustable to test height
- Test Modes: Static hold, cyclic loading, fatigue testing
- Test Cycles: Programmable (up to 100,000 cycles or more)
- Test Object Compatibility: Beds, mattresses, furniture frames
- Control System: PLC with touchscreen HMI
- Frame Construction: Heavy-duty aluminum/steel profile structure
- Safety Features: Emergency stop, overload protection, limit switches
- Power Supply: 220–240 V AC, 50/60 Hz
