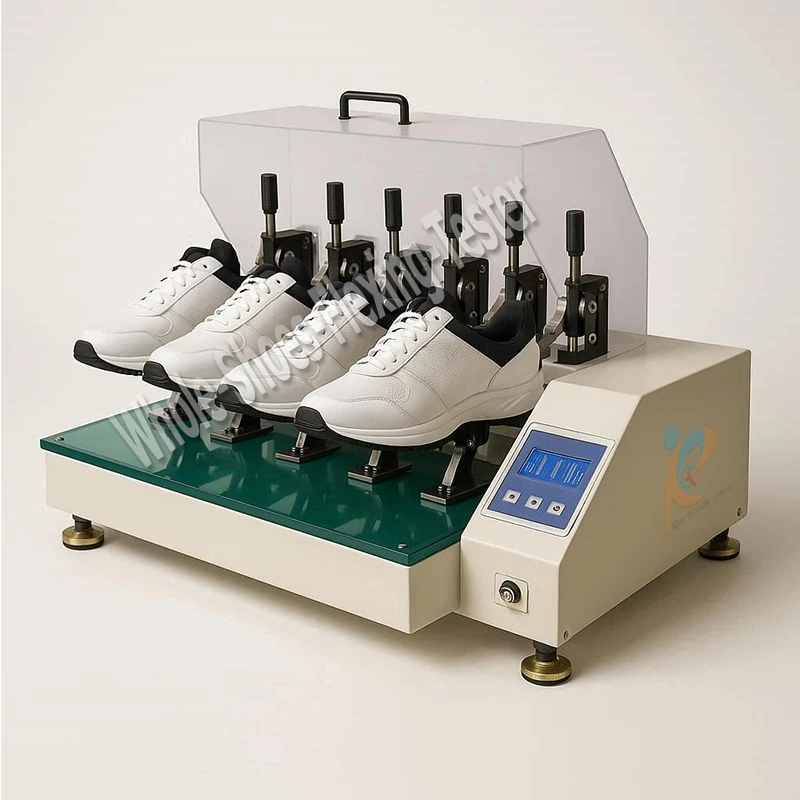

Whole sole flexing tester designed to evaluate footwear sole durability and flex resistance under repeated bending.
Specification/Features
| TEST POSITION | 6 |
| CLAMP INTERVAL | 110 ± 1mm, width 155mm |
| FLEXING SHAFT DIAMETER | 30 ±0.1mm |
| MOVABLE GRIPS DISPLACEMENT | 41.5 ± 0.5mm |
| SPEED | 140r/min |
| BENDING ANGLE | 90 ± 2º |
| COUNTER | 0~99,999,999 |
