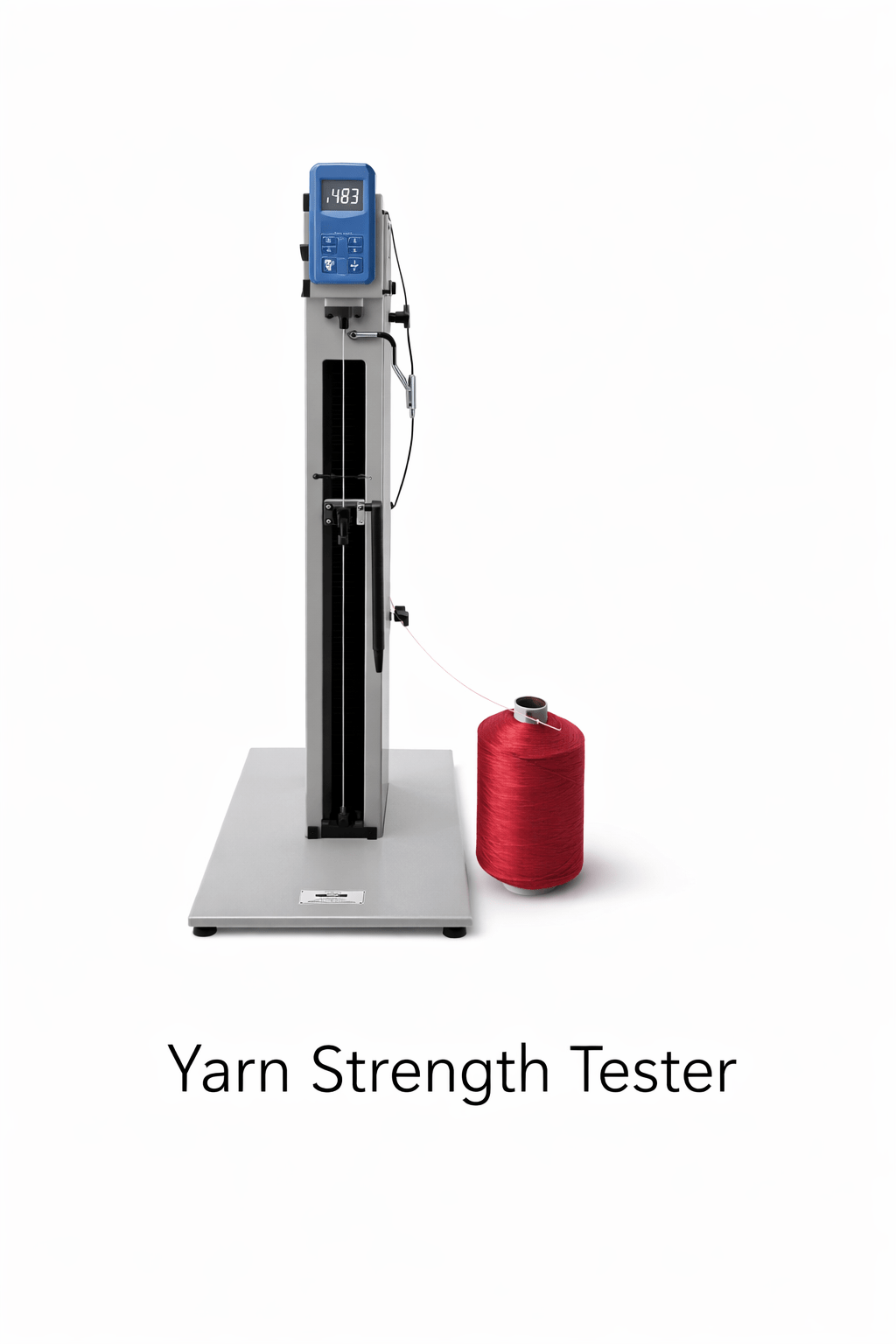

This testing equipment typically consists of a motorized vertical stand with grips to hold the yarn specimen, a load cell to measure the force applied, and a digital display to show the breaking strength and other parameters. A red yarn bobbin is shown in the image, set up for testing. A Yarn Strength Tester, used for checking the breaking strength of yarn (single, double, or plied)
Specification/Features
- Capacity: Ranges from 5Kgf to 50Kgf, with a least count of 1
- gf or 0.01Kgf.
- Traverse Speed: Typically 300mm/min OR 500mm/min.
- Grip Separation (Max): Can range from 500mm to 1000mm
- Grip Separation (Min): Can range from 25mm to 100mm
- Power: 220V AC, 50Hz.
- Safety Device: Often includes a limit switch for over-traverse protection.
